Automatic Marine Engine Shutdown Systems

Automatic Marine Engine Shutdown is Mandatory for Boats With Equipment That Draw Intake Air From Within the Protected Space

Compressed gas suppressants such as HFC-227ea and FK-5-1-12 clean extinguishing agent will not engines.

If a fire breaks out aboard a vessel, the engine(s) must be shut down prior or during the discharge of the Fireboy suppression system to effectively extinguish the fire. Continued engine operation may remove the agent, lowering the concentration required to effectively extinguish the fire, making an Engine Shutdown System necessary.

Download all
pdf

Engine Shutdown Manual and Installation (ES / ELS Series)

Size: 495.62 KB
Hits: 2614
Date modified: 01-18-2021
pdf

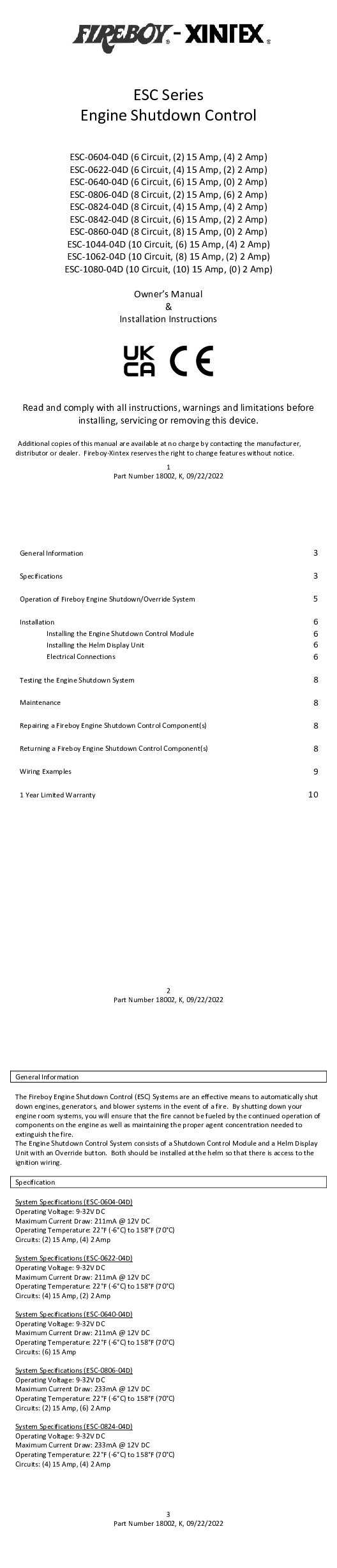

Engine Shutdown Manual and Installation (ESC Series)

Size: 355.05 KB
Hits: 2287
Date modified: 01-08-2021
pdf

18005 - ES & ELS Series - REV N

Size: 400.00 KB
Hits: 20
Date modified: 09-13-2024

First Select from the Three Series Available:

Each engine shutdown display unit comes with an integrated alarm horn, charged / discharged lights and an override switch for restart or control of auto-shutdown. Additional units and wire harnesses are available for a second station.

ESC Series:

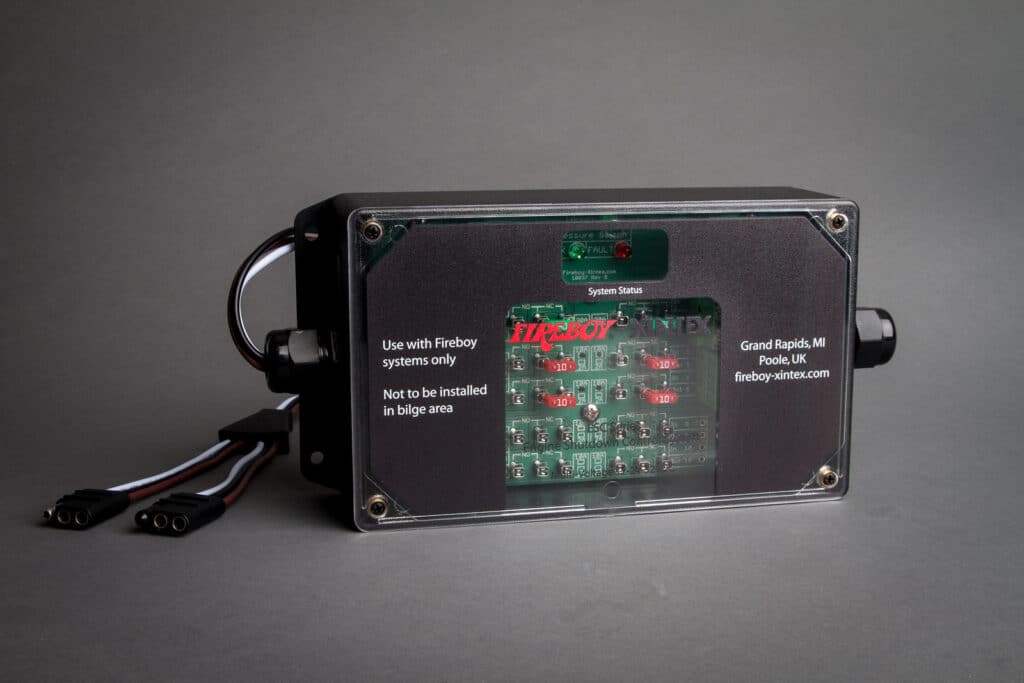

Featuring an ISO 54 Enclosure, fuses, internal terminals, Heyco™ wire connectors, along with a see thru cover to easy observe circuit board mounted L.E.D.’s which indicate circuit board and Fireboy Extinguisher status, or that a fault condition exists. Non-energized relays. A combination of models including 6, 8, and 10 circuits. Select from a combination of relays; 15 amp and 2 amp gold plated relays, (operating range 10 uA to 2 amps).

All ESC models operate on Multi-Voltage 12-24-32V DC

All models include a square black (DU-SBH-20) display with Water Resistant Display featuring multi-colored L.E.D’s. for the helm station with override function.

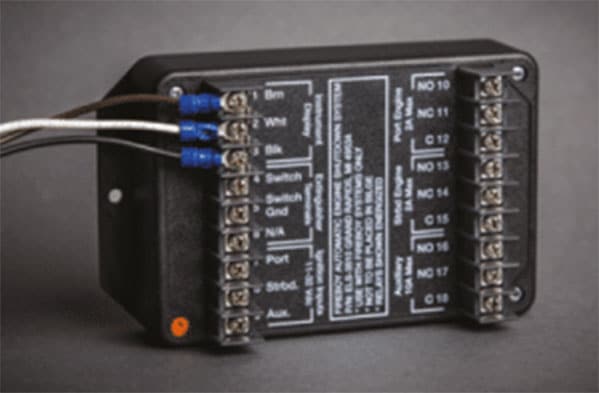

ELS Series:

Engine circuit relays feature an operating range of 10 uA to 2 amps. Auxiliary relays have an operating range of 200mA to 20 amps for the shutdown of generators, dampers, louvers, and other types of related engine room equipment.

All ELS models are 9-38V DC compatible with a choice of either a round (DU-RBH-20) or square (DU-SBH-20) helm display.

ES Series:

Available for shutting down up to eight circuits with engine circuit relays featuring an operating range of 200 mA to 20 amps. Operates in 9-38V DC models.

The ES model includes a choice of either a round (DU-RBH-20) or square (DU-SBH-20) helm station display.

Marine Engine Shutdown System Displays

DU-SBH-20

Deluxe Helm Display, Membrane Switch, Remote Horn, LED Display, Square Only.  Includes 3 ft. cable.

DU-RBH-20

Deluxe Helm Display with Gauge Body, LED and Color Graphics.  Includes 3 ft. cable.

DU-SBH-21

Deluxe Helm Display, 2 Systems: Control Primary, Monitor Secondary.  Remote Horn, LED Display, Square Only.  Includes 3 ft. cable.

Model Number

Description

Price



ES Series – 9-38V DC

All “ES” shutdown systems are rated for 9-38V DC and N.O. or N.C. circuits and include a display



ES-3000-01

3 Circuit with (3) 20A relays and Round Display

$600.00 US

ES-3000 -02

3 Circuit with (3) 20A relays and Square Display

$600.00 US

ES-5000-01

5 Circuit with (5) 20A relays and Round Display

$700.00 US

ES-5000-02

5 Circuit with (5) 20A relays and Square Display

$700.00 US

ES-5015-01

5 Circuit with (5) 20A relays, Time Delay and Round Display

$750.00 US

ES-5015-02

5 Circuit with (5) 20A relays, Time Delay and Square Display

$750.00 US

ES-8000-01

8 Circuit with (8) 20A relays and Round Display

$850.00 US

ES-8000-02

8 Circuit with (8) 20A relays and Square Display

$850.00 US

ES-8015-01

8 Circuit with (8) 20A relays, Time Delay and Round Display

$950.00 US

ES-8015-02

8 Circuit with (8) 20A relays, Time Delay and Square Display

$950.00 US

ESC Series – Non-Energized Relays, Internal wire connectors. All models 12/24/32 VDC.

All “ESC” engine shutdown systems are rated for 12-24-32V DC, N.O. or N.C. circuits and include a square display with water-resistant membrane switch and remote horn


ESC-0604-04D Six (6) Circuit with (2) 15A and (4) 2A gold plated relays $790.00 US

ESC-0622-04D Six (6) Circuit with (4) 15A and (2) 2A gold plated relays $790.00 US

ESC-0640-04D Six (6) Circuit with (6) 15A relays $790.00 US

ESC-0806-04D Eight (8) Circuit with (2) 15A and (6) 2A gold plated relays $940.00 US

ESC-0824-04D Eight (8) Circuit with (4) 15A and (4) 2A gold plated relays $940.00 US

ESC-0842-04D Eight (8) Circuit with (6) 15A relays and (2) 2A gold plated relays $940.00 US

ESC-0860-04D Eight (8) Circuit with (8) 15A relays $940.00 US

ESC-1044-04D Ten (10) Circuit with (6) 15A relays and (4) 2A gold plated relays $1040.00 US

ESC-1062-04D Ten (10) Circuit with (8) 15A and (2) 2A gold plated relays $1040.00 US

ESC-1080-04D Ten (10) Circuit with (10) 15A relays $1040.00 US

ELS Series – Low Current, 9-38V DC

All “ELS” shutdown systems are rated for 9-38V DC and N.O. or N.C. circuits and include a display


ELS-3510-01 3 Circuit with (1) 20A and (2) 2A Gold Plated Relays and Round Display $725.00 US

ELS-3510-02 3 Circuit with (1) 20A and (2) 2A Gold Plated Relays and Square Display $725.00 US

ELS-5510-01 5 Circuit with (3) 20A and (2) 2A Gold Plated Relays and Round Display $800.00 US

ELS-5510-02 5 Circuit with (3) 20A and (2) 2A Gold Plated Relays and Square Display $800.00 US

ELS-8510-01 8 Circuit with (6) 20A and (2) 2A Gold Plated Relays and Round Display $925.00 US

ELS-8510-02 8 Circuit with (6) 20A and (2) 2A Gold Plated Relays and Square Display $925.00 US
