Marine Fire Detection Systems: “FBD” Series

Fireboy-Xintex FBD Series Fire Detection Systems provide intelligent networked solutions with easy installation.

No extensive set-up or programming required. An excellent fit for personal yachts or cabin cruisers. The FBD 2 and MZ series monitors up to 12 zones.

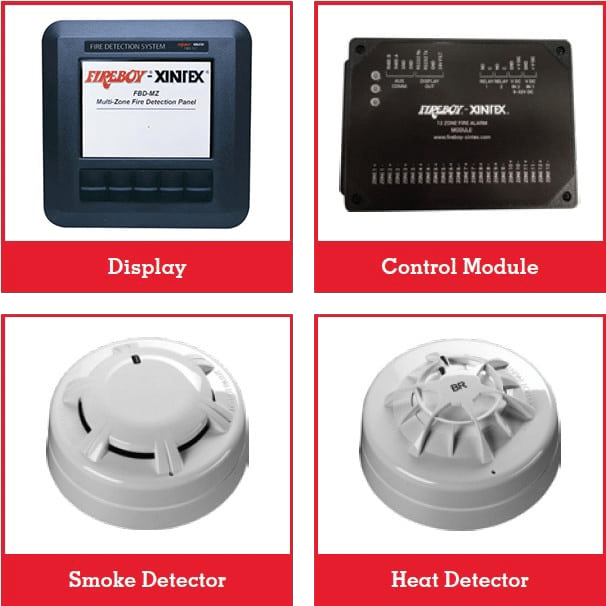

FBD-MZ Conventional Fire Detection System (4-12 Zones)

The FIREBOY-XINTEX FBD-MZ Series Fire Detection Systems can be Programmed for 4 to 12 Zones of Fire Protection.

Features

  • 3.5 in Square LCD Back-lit Color Display
    – Water-resistant
    – System Monitoring and Alarm Indication from One Central Location
    – Audible Alarm for “Fire” or “System Fault”
    – Programmable Screens for Easy System Description
    – USB Port for Display Programming
    – USB Drive Included
    – 48” Wiring Harness to Connect to Control Module
  • Programmable from 4 to 12 Zones
  • Monitor Up to 8 Detectors Per Zone
  • Auto-sensing 12/24V DC Supply
  • Voltage, Reverse Polarity and EMI Protected
  • Marked
  • Monitor Fireboy-Xintex CM D5/6-M CO Alarms Through FBD Display
Fire-Detection-FBD

FBD-2 (2 Zones)

Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)

The 3-5” square membrane style display panel features colored LED’s indicating Power and Status.

Features:

  • Visual and audible indication of a fire or fault
  • Water Resistant Display
  • Includes 85 dB horn
  • Supply Voltage: 12/24V DC
  • Voltage and EMI protected.
  • Reverse polarity protected.
fbd-2

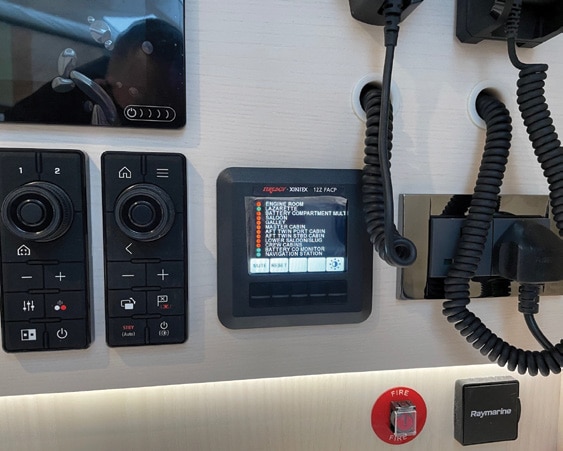

Monitor Vessel From One Location



These systems can be set up to monitor the engine room, battery compartment, lazarette, toy garage and accommodation spaces. Each system features easy installation and minimal display setup to customize.

Download all
  •

Fire Detection Systems: FBD Series

pdf

FBD-MZ Fire Detection Brochure

Size: 604.17 KB
Hits: 1459
pdf

FBD-2 Owner's Manual

Size: 494.80 KB
Hits: 608



Model Number

Description

Price



OMHD-05

194°F Rate-of-Rise Heat Detector (Engine Room) w/o base

$185.00

OMSD-01

Optical Smoke Detector (Accommodations) w/o base

$200.00

OMSD-02

Optical Smoke/Heat Detector Combination Detector w/o base

$240.00

OMDB-01

Base for OMHD Heat or OMSD Smoke Detectors

$45.00
